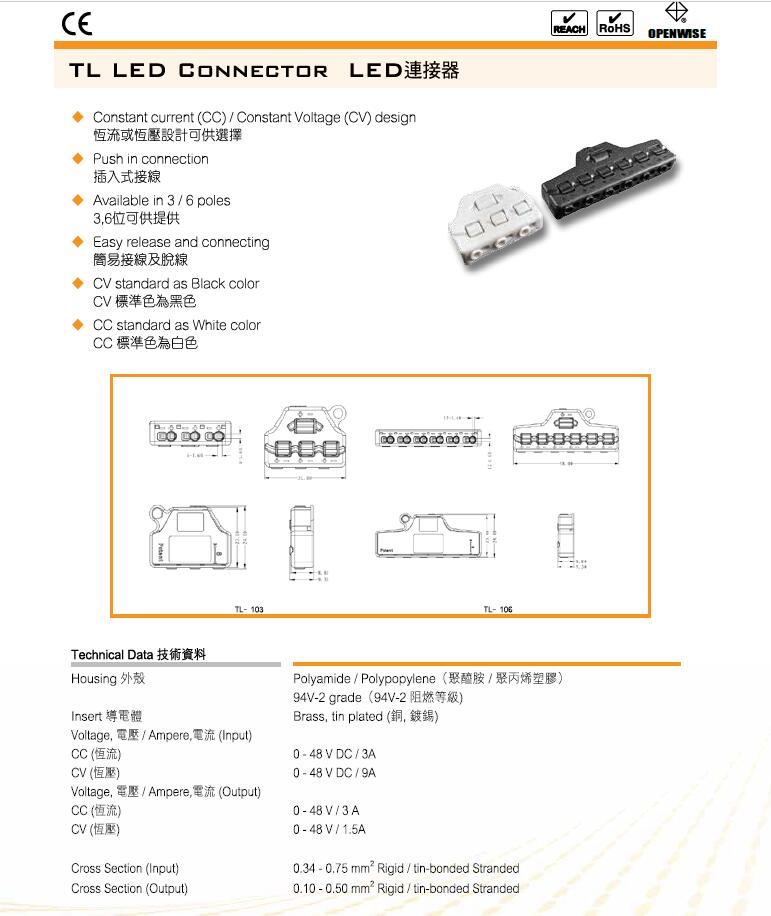

TL LED连接器
Technical Data
Housing Polyamide / Polypropylene
94V-2 grade
Insert Brass, tin plated
CV 0-48 V / 1.5A
Cross section (Input) 0.34 – 0.75mm2 Rigid / tin-bonded Stranded
Cross section (Output) 0.10 – 0.50mm2 Rigid / tin-bonded Stranded
Voltage / Ampere (Input)
CC 0-48 V DC / 3A
CV 0-48 V DC / 9A
Voltage / Ampere
CC 0-48 V / 3A
Housing Polyamide / Polypropylene
94V-2 grade
Insert Brass, tin plated
CV 0-48 V / 1.5A
Cross section (Input) 0.34 – 0.75mm2 Rigid / tin-bonded Stranded
Cross section (Output) 0.10 – 0.50mm2 Rigid / tin-bonded Stranded
Voltage / Ampere (Input)
CC 0-48 V DC / 3A
CV 0-48 V DC / 9A
Voltage / Ampere
CC 0-48 V / 3A
