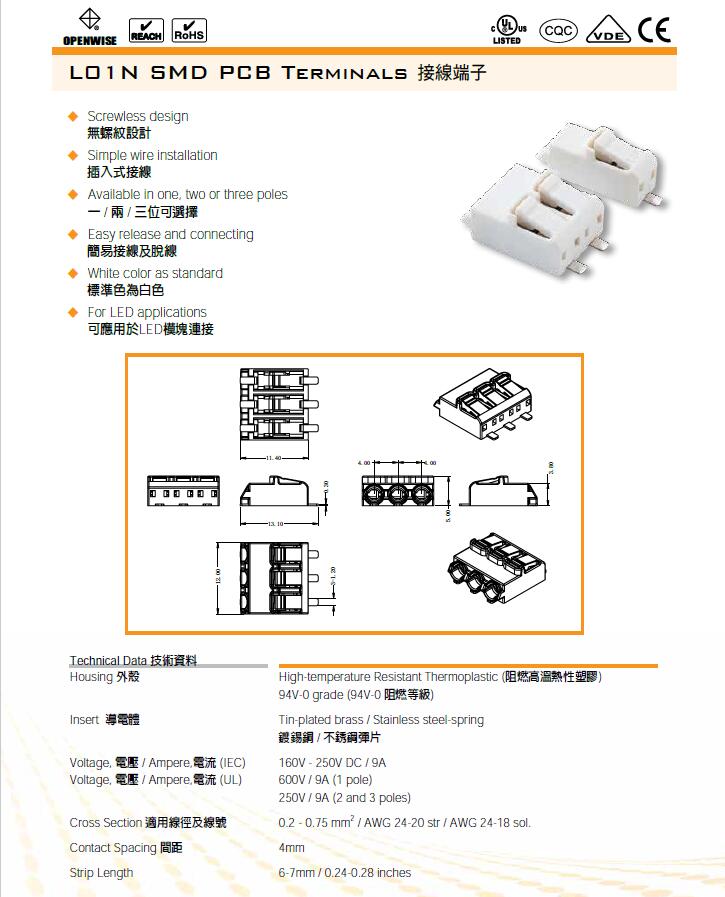

L01N接线端子
Technical Data
Housing High-temperature Resistant Thermoplastic
94V-0 grade
Insert Brass, tin-plated
Stainless steel spring
Voltage / Ampere (IEC) 160V-250V DC / 9A
Voltage / Ampere (UL) 600V / 9A (1 pole)
250V / 9A (2 and 3 poles)
Contact spacing 4mm
Strip length 6-7mm / 0.24-0.28 inches
Cross section 0.2 – 0.75mm2 / AWG 24-20str / AWG 24-18 sol.
Housing High-temperature Resistant Thermoplastic
94V-0 grade
Insert Brass, tin-plated
Stainless steel spring
Voltage / Ampere (IEC) 160V-250V DC / 9A
Voltage / Ampere (UL) 600V / 9A (1 pole)
250V / 9A (2 and 3 poles)
Contact spacing 4mm
Strip length 6-7mm / 0.24-0.28 inches
Cross section 0.2 – 0.75mm2 / AWG 24-20str / AWG 24-18 sol.
