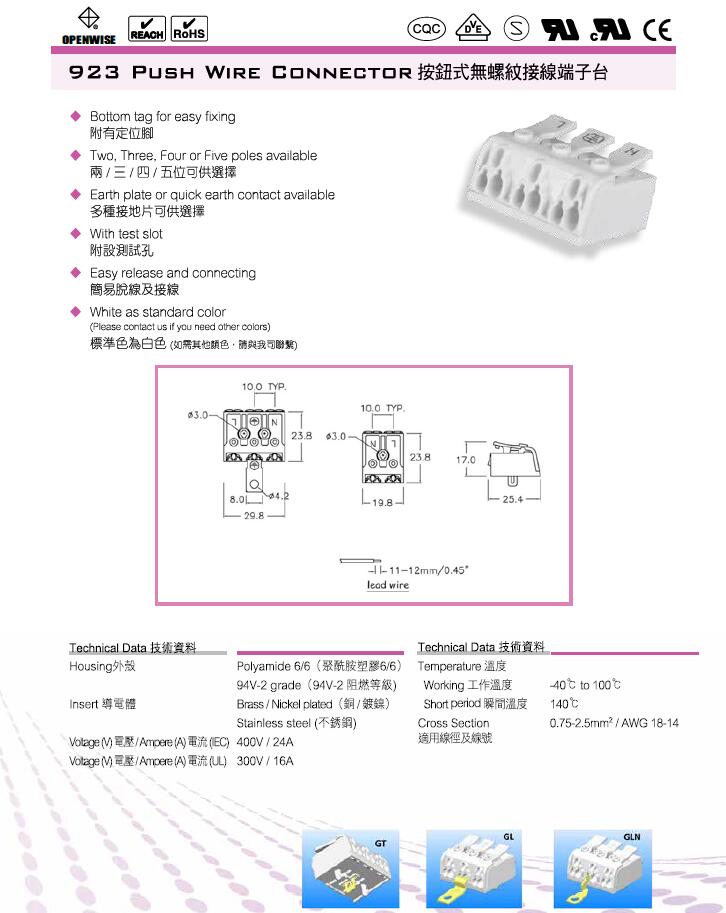

923按键式无螺纹接线端子台
Technical Data
Housing Polyamide 6/6
94V-2 grade
Insert Brass/Nickel-plated
Stainless sreel
Voltage / Ampere (IEC) 400V / 24A
Voltage / Ampere (UL) 300V / 16A
Cross Section (mm²) 0.75 to 2.5mm² / AWG 18-14
Temperature
Working -40℃ to 100℃
Short Period 140℃
Housing Polyamide 6/6
94V-2 grade
Insert Brass/Nickel-plated
Stainless sreel
Voltage / Ampere (IEC) 400V / 24A
Voltage / Ampere (UL) 300V / 16A
Cross Section (mm²) 0.75 to 2.5mm² / AWG 18-14
Temperature
Working -40℃ to 100℃
Short Period 140℃
