Technical Data
Housing Polyamide 6/6
94V-2 grade
Insert Brass/ Stainless Steel
Nickel plated
Voltage / Ampere 400V / 17.5A
Cross Section (mm²) 0.75 to 1.5mm²
Temperature
Working -40℃ to 100℃
Short Period 140℃

Technical Data
Housing Polyamide 6/6
94V-0 grade
Insert Brass
Voltage 120V-600V
Ampere Max. 6A
Rating Temperature 105℃
16 AWG (26 Strand or less)
18 AWG (16 Strand or less)
Wiring
Solid 12-18 AWG
Stranded 12-14 AWG (19 Strand or less)
Tin-bonded stranded 12-14 AWG (19 Strand or less)

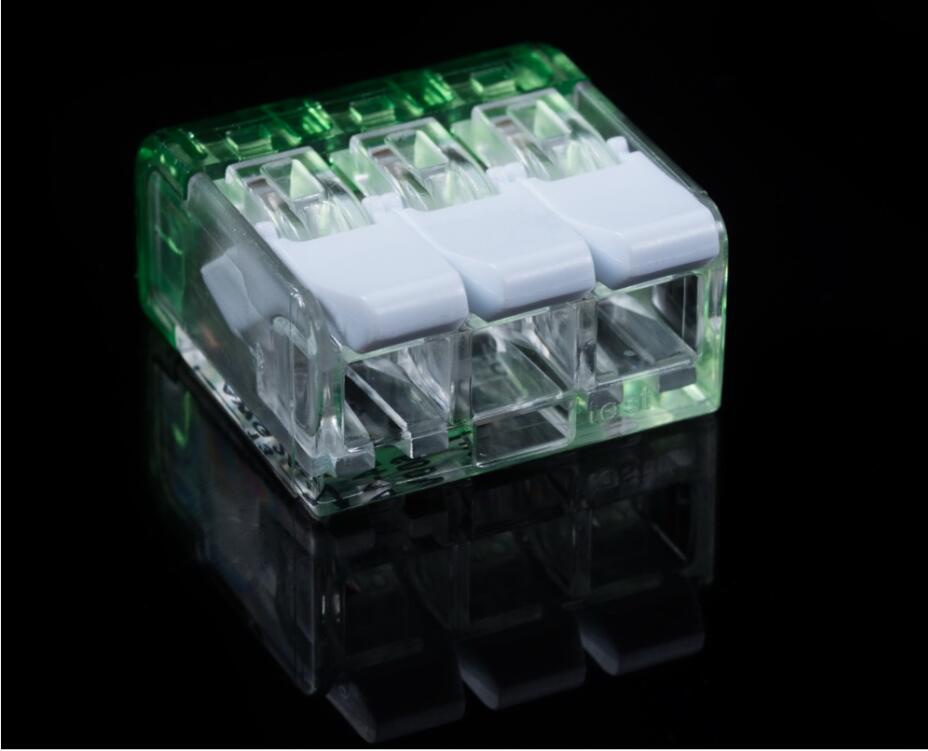

Technical Data
Housing Polycarbonate / Polyamide 6/6
94V-2 grade
Insert Brass
Stainless steel spring
Voltage / Ampere 450V DC / 32A
Working temperature -40℃ to 100℃
Cross section 0.2 – 4mm² / AWG 24-14 (sol., str)

Technical Data
Housing Polyamide 6/6
       94V-0 grade
Insert Brass
Voltage / Ampere
Voltage / Ampere (IEC) 300V/6A
Voltage / Ampere (UL) 600V/6A
Temperature
Rating 105℃
Wiring
Solid 18-20 AWG
Stranded 18-20 AWG (19 Strand or less)
Tin-bonded stranded

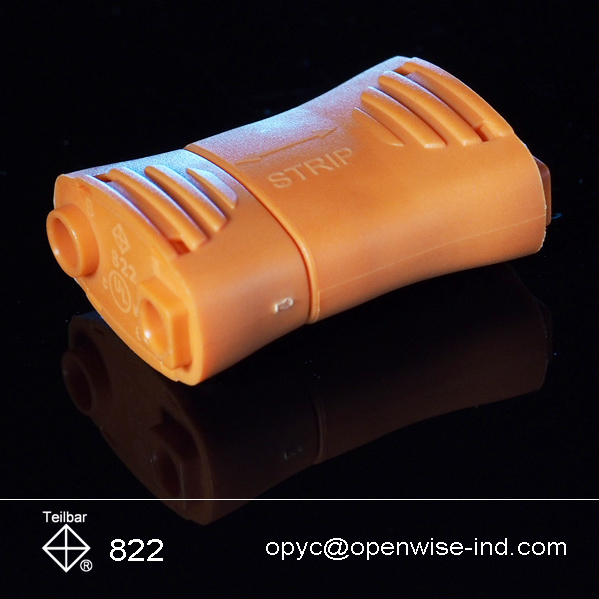

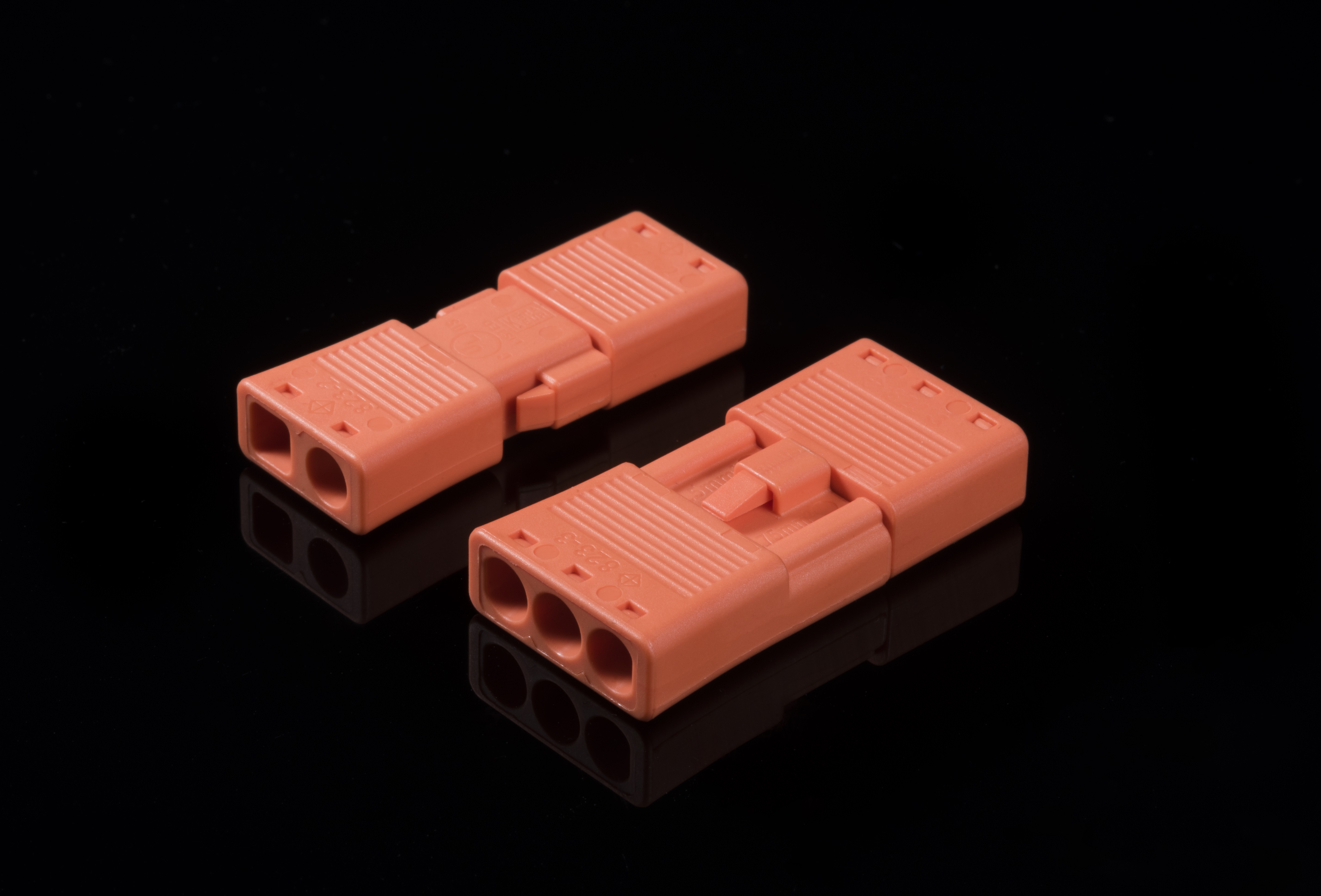

． 插线式分断接线头 Luminaire Disconnect
． PA66工程塑料成型外壳，UL 94V-0阻燃等级。
． 高导电性镀钖铜板接线端子。
． 剥线后直接插入线槽即可。一次分断全灯输出。
． 适合单股和浸钖多股电线。
．
适用于OEM产品与照明设备电气连接

‧  PC工程塑料外壳，UL 94V-0阻燃等级。
‧  不锈钢弹片、高导电性铜与钢板接端子。
‧  剥线后直接插入线槽即可。
‧  适合单股和多股导线，可重复插入比先前拆掉更大
   规格的导线。
‧  适用于灯饰配线和建筑水电工程电气接线盒内配线。
